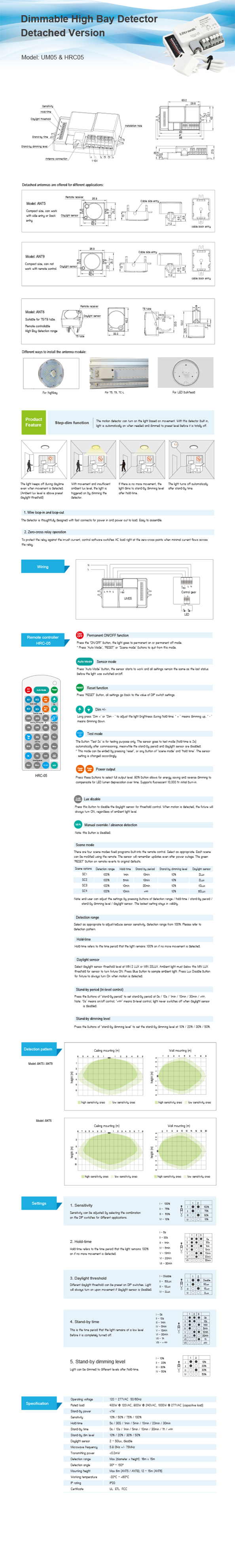

Dimmable High Bay Detector Detached Version UM05 & HRC-05
Description
Dimmable High Bay Detector Detached Version UM05 & HRC-05
- Details
- Send Inquiry
| 1-10V Dimming Control | |
| High Bay Detector | |
| Detached Version | |
| Technical Data | |
| Operating voltage: | 220~277VAC 50/60Hz |
| Rated load (capacitive load): | 400W @ 120VAC, 800W @ 240VAC 1000W @ 277VAC |
| Stand-by power: | <1W |
| Sensitivity: | 10% / 50% / 75% / 100% |
| Hold-time: | 5s / 30S / 1min / 5min / 10min / 20min / 30min |
| Stand-by time: | 0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞ |
| Stand-by dim level: | 10% / 20% / 30% / 50% |
| Daylight sensor: | 2 ~ 50lux, disable |
| Microwave frequency: | 5.8 GHz +/- 75MHz |
| Transmitting power: | <0.2mW |
| Detection range: | Max (diameter x height): 16m x 15m |
| Detection angle: | 30° ~ 150° |
| Mounting height: | Max 6m (ANT5 / ANT9); 12 ~ 15m (ANT6) |
| Working temperature: | -20℃ ~ +60℃ |
| IP rating: | IP20 |
| Certificate: | UL ETL FCC |
